Firewall pfSense or OPNsense R1x
1U rackmount appliance with 4 Gigabit Ethernet ports
The R1x Appliance is a Firewall box with an Intel x86 architecture and compatible with all Firewall OS on the market. You can boot the box on a USB key and install …
Compatible OS Firewall:
- pfSense,
- OPNsense,
- Untangle,
- IPFire,
- Sophos,
- Linux iptables,
- …
Compatible OS Microsoft / Linux:
- Windows 10,
- FreeBSD,
- Ubuntu,
- Debian,
- CentOS
- Red Hat,
- …
Compatible OS Router / IoT / Autres :
- VyOS,
- 3CX,
- OpenWrt,
- Windows 10 IoT,
- RIOT,
- Contiki NG,
- FreeRTOS
- …
Celeron® J1900
4 core / 2 Ghz burst 2.7
DDR3L SO-DIMM
2GB / 4GB / 8GB
4 ports
RJ45 GIGABIT
1 Slot Mini PCI Express
1 Disque / SSD 2,5″
1 slot SIM + mPCIe
1 slot 2230 M2
Flexible PCIe extension
The Q1x enclosure includes multiple mPCIe slots to support the installation of a WIFI card or a 4G LTE card and enable backup of the main internet link.
HDMI output
HDMI connector for connecting a display.
Intel® HD Graphics card
Jumper auto-boot
A jumper on the motherboard allows the box to automatically start. This allows the appliance to automatically start when the power supply returns in the event of a power outage. Important for security systems, monitoring, etc.
VESA compatible
To allow the boxes to be used easily behind a screen, a VESA system is supplied with screws.
Blank packaging
The packaging box is free of any writing. No identification possible.
Power supply
The box can be delivered with a power cord for each country:

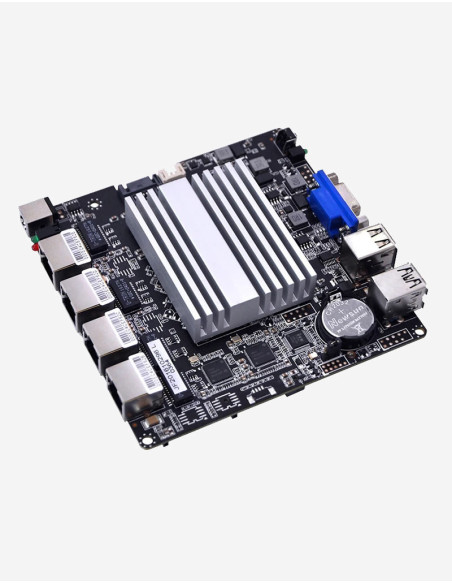

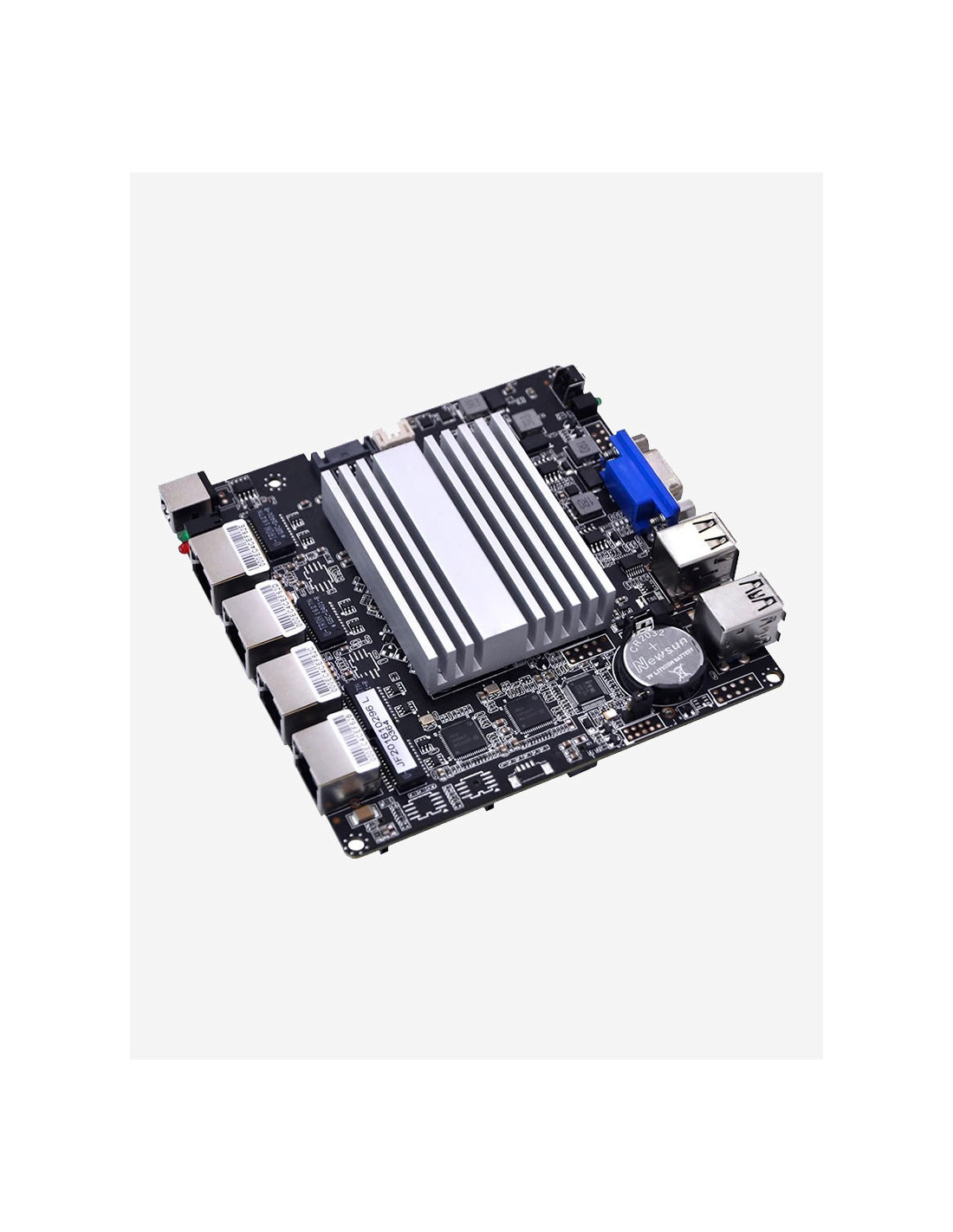

Internal quality card equipped with:
1 x DDR3L-SODIMM 1600Mhz 1.35V Non ECC memory slot
Memory capacity 2GB / 4GB / 8GB Max
1 SATA connector + power supply
1 x mPCIe slot for SSD drives from 16GB to 2 TB,
1 x mPCIe slot for WIFI card (Full size)
1 x mPCIe slot for 4G card (Half Size)
1 x SIM slot
4 x Intel I211-AT Gigabit LAN
1 x HD video (HDMI)
3 x USB2.0, 1 x USB3.0
HDD LED, power LED
1 x DC 12V DC connector
Environmental characteristics:
Aluminium alloy case
Dimensions 135 x 128 x 38 mm
Weight 0.7 Kg
Cooling type: Fanless
Operating temperature: 0°C – 50° Celsius
